Grow Tent Electrical Safety: How to Avoid Overloading Your Sockets

A standard UK socket, and any single extension lead plugged into it, is only rated to carry about 3,000 watts in total: that's 13 amps at 230 volts, which works out to just under 2,990W. That number matters more in a grow tent than almost anywhere else in the house, because a light, an extraction fan, a heater, a pump and a humidifier switched on together add up fast, and unlike a kettle or a toaster, most of that equipment runs unattended for hours at a stretch. The fix is straightforward: add up the wattage of everything sharing one socket, never daisy-chain extension leads, use a proper contactor timer rather than a household plug-in timer for anything with a ballast or heating element, and step up to a multi-way contactor board, ideally fitted by a qualified electrician, once you're running more than a light and a fan or two from the same source.

In this article

• How many watts can you safely plug into one socket?
• Why doesn't a normal plug-in timer work for a grow light?
• What's the safest way to add extra sockets in a grow tent?
• Do you need a multi-way contactor board for a bigger setup?
• Which timer or contactor board should you choose?
• Should you fit an RCD?
• FAQ

How Many Watts Can You Safely Plug Into One Socket?

Every standard UK wall socket is rated to 13A, and so is a good-quality extension lead plugged into it (some older leads are only rated to 10A or less, so check the rating printed on the back or underside before you rely on one). At 230V, 13A works out to just under 3,000W, and that's the combined ceiling for everything drawing power through that socket, whether it's plugged in directly or through one extension lead.

Add up your equipment before you plug it all in, not after something trips. A typical small-tent setup, say a 600W-class LED, a 45W extraction fan and a 25W circulation fan, comes to well under 700W with plenty of headroom. The number that catches people out is a space heater: a common 2,000W fan heater on that same socket over winter pushes the total close to 2,700W, and adding anything else tips it over the limit. According to Electrical Safety First, exceeding an extension lead's rated current can cause the plug or socket to overheat and start a fire.

Why Doesn't a Normal Plug-In Timer Work for a Grow Light?

A household plug-in timer is built for small, steady loads like a lamp or a fan. Its contacts aren't designed for the repeated switching of an inductive load like an HID ballast, which draws a brief surge of current every time it switches on. Do that twice a day for months and the contacts pit and arc, which is how a timer ends up stuck on, failing to switch off, or melted.

A dedicated contactor timer solves this by separating the two jobs: a low-power timing mechanism sets the schedule, and a heavy-duty relay, the contactor, does the switching. For a single light on a budget, a purpose-built contactor timer is the simple fix.

For the photoperiod-scheduling side, from mechanical dials to app-controlled smart timers, see our complete guide to grow room light timers. This article covers the electrical safety side: making sure whatever you plug in can handle the load.

What's the Safest Way to Add Extra Sockets in a Grow Tent?

Electrical Safety First's guidance on extension leads covers a few points worth following in a grow tent specifically. Use only one extension lead per wall socket, and never plug an extension lead into another: daisy-chaining leads is one of the most common causes of an overloaded circuit. Choose a fused multi-way bar extension over a block adaptor, which has no fuse of its own. If you use a cable reel rather than a fixed-length lead, unwind it fully before use, since a coiled reel under load can overheat well within its rated current.

For grouping a light, a fan and a pump close to one socket without trailing cable across the floor, a short, fused multi-socket extension is the tidiest option.

Do You Need a Multi-Way Contactor Board for a Bigger Setup?

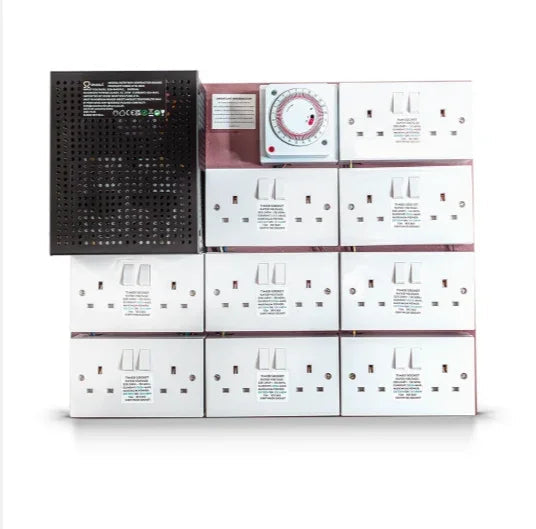

Once you're running more than a light and a fan or two from a single socket, a tangle of stacked extension leads stops being tidy and starts being the overload risk Electrical Safety First warns about. A multi-way contactor board consolidates several circuits behind one heavy-duty relay system, with a mix of timed sockets for lighting and always-on sockets for fans, pumps and controllers, all fed from a single, properly rated supply point instead of a chain of adaptors.

These boards carry serious current, and the manufacturer guidance on the MDF Timer Board below is explicit that it should be installed by a qualified electrician, not just plugged into a wall socket and left. Treat that as standard advice for any board rated above a single household circuit.

Which Timer or Contactor Board Should You Choose?

Match the board to how much you're actually running, not to how much room is in the box for future expansion.

Product	Price	Circuits	Best for
Heavy Duty Timer	£9.95	1 timed circuit	A single tent, one light on a schedule
MDF Timer Board	From £52.49	6 to 26 ways (timed + always-on), 40A rated	One tent with several timed and constant-power devices
Omega MDF Contactors	From £75.00	6 to 24 ways plus auxiliary sockets	Multiple tents or a full grow room on one supply point

Should You Fit an RCD?

A residual current device, or RCD, monitors current flowing out through the live wire against current flowing back through neutral, and cuts the power in a fraction of a second if it spots a mismatch, the kind of leak you get from a damp reservoir splash reaching a connector or a damaged cable. That's different protection from a fuse, which only reacts to overload or a dead short.

Most modern UK homes already have RCD protection at the consumer unit, but it's worth checking, especially in an older property, garage, shed or outbuilding, where a grow tent often ends up. A plug-in RCD adaptor at the wall socket is a simple, inexpensive way to add that protection to a single circuit. For a permanent multi-way board, ask a qualified electrician to confirm RCD protection is in place rather than relying on a plug-in adaptor alone.

Frequently Asked Questions

How many watts can I safely run from one UK socket?

About 3,000W (13A at 230V), and that limit applies to everything plugged into that socket combined, whether directly or through one extension lead. Add up the wattage of every device before you plug it all in.

Can I plug my grow light's timer into an extension lead?

Yes, as long as the lead is rated for the combined load and it's the only extension lead on that socket. Never plug a second extension lead into the first: that daisy-chaining is one of the most common causes of an overloaded circuit.

Do contactor timer boards need to be installed by an electrician?

Larger multi-way boards, like the MDF Timer Board above, are explicitly labelled by the manufacturer as needing installation by a qualified electrician, since they carry more current than a standard plug-in device. A small single-circuit unit like the Heavy Duty Timer is designed to be plugged straight into a wall socket.

What's the difference between a block adaptor and an extension lead, and which is safer?

A block adaptor plugs straight into the wall and has no fuse of its own, so it offers no protection if you overload it. A multi-way bar extension lead is fused and is the safer choice for grow tent equipment, according to Electrical Safety First's guidance.

Should I use an RCD with my grow tent equipment?

It's good practice anywhere water is involved: a reservoir, a humidifier, a misting system. Check whether your consumer unit already has RCD protection, and consider a plug-in RCD adaptor or an electrician-fitted circuit for a dedicated grow space.
